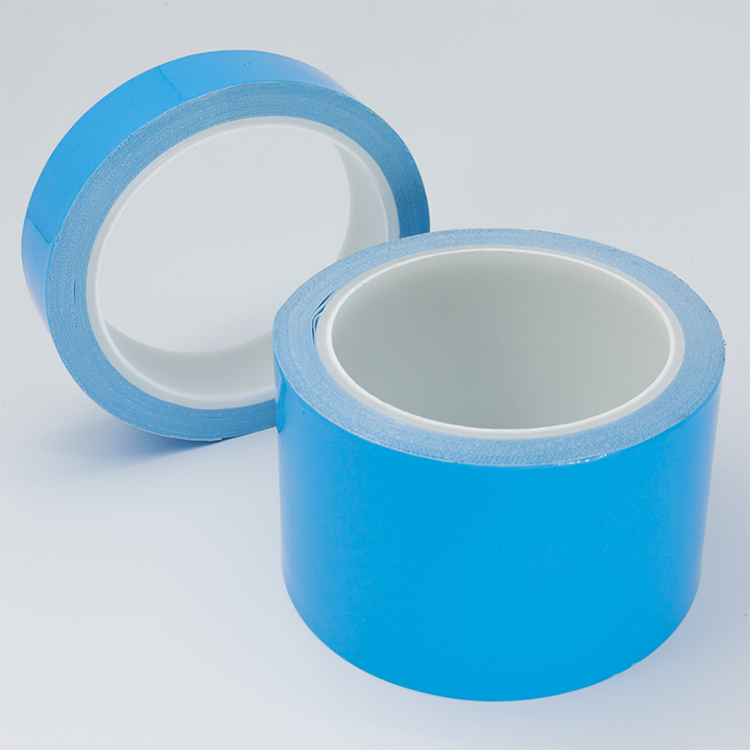

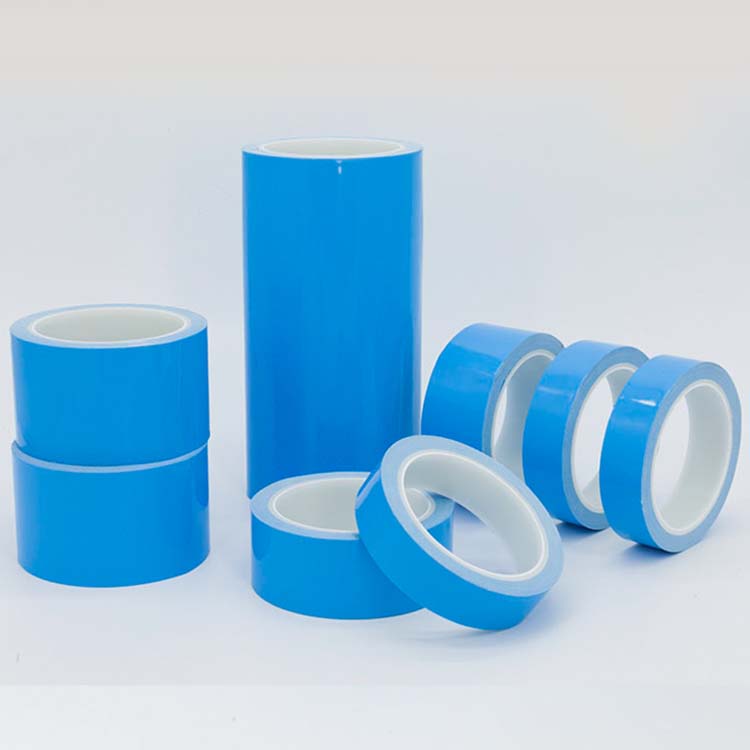

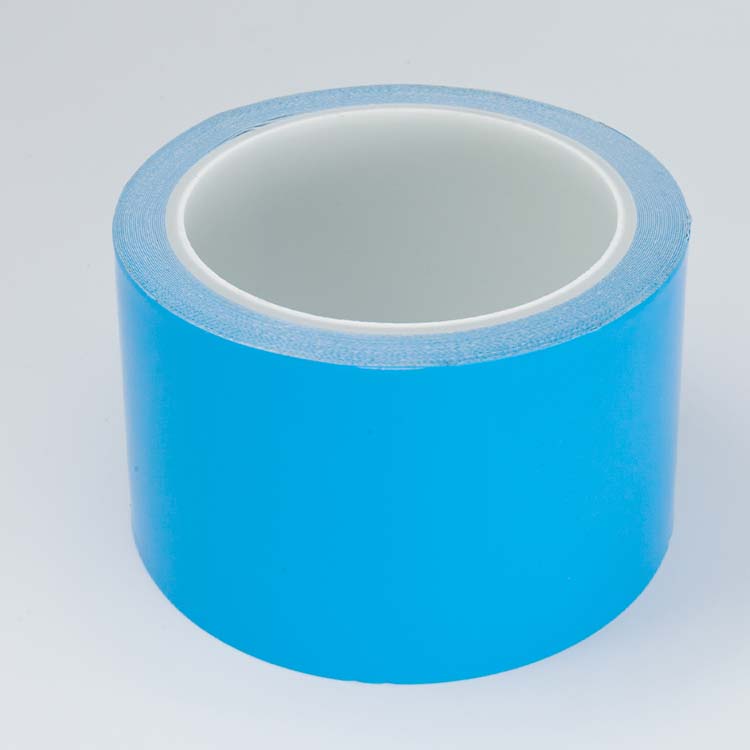

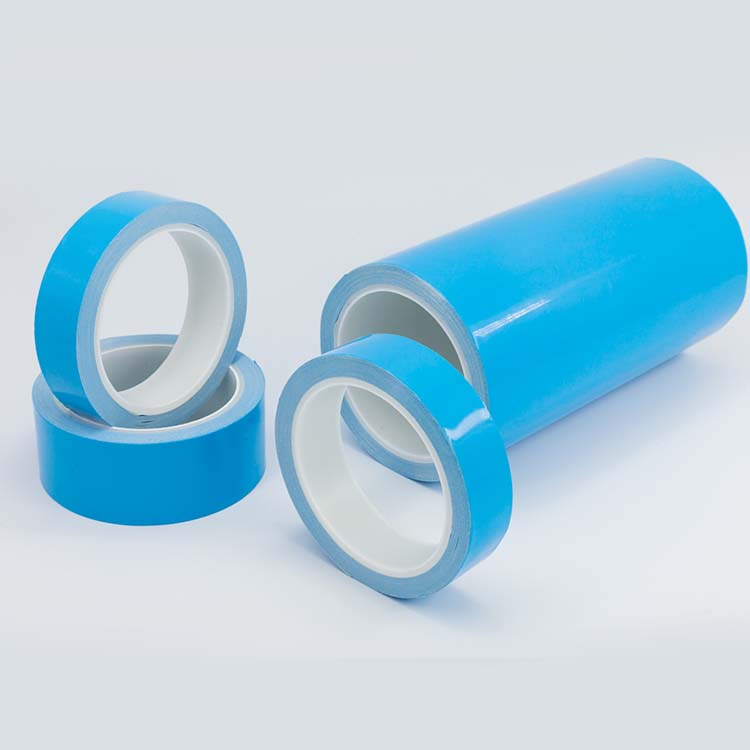

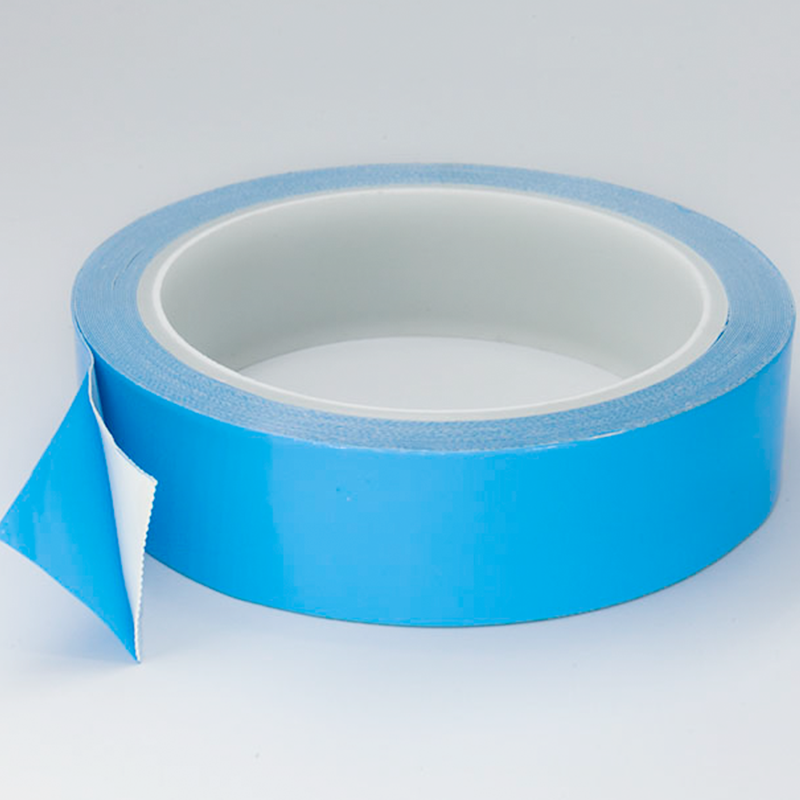

0.2mmBlue-film Thermal Conductive Tape

FP3020-1

0.2mmBlue-film Thermal Conductive Tape

Fuyin thermal conductive tape is a product made of fiberglass mesh cloth as the substrate, coated with pressure-sensitive adhesive on both sides, and compounded with single or double silicon release material. It can be rolled or die-cut into various shapes, featured by good thermal conductivity and electrical insulation, and widely application in electronic components.

product characteristic

●No color, clear pure glue tape

●Good initial adhesion and holding power

●High cohesion, good plastic resistance, excellent die-cutting performance

●No residue, excessive glue, stable chemical, organic solvent resistance





main application

Nameplate, label, logo: apply to mesh printing, advertising, aviation, medical and industrial equipment, automotive, household appliances, electronic markets and other industries

Soft plate FPC: apply to mobile phone, tablet, PDA, digital camera, LCM electronic product.

Thin film switch: contain soft, hard, uneven thin film switch


Shockproof foam: good initial adhesion and holding power, high cohesion, good plastic resistance



product characteristic:

• High adhesion, stable weather resistance, waterproof, good shockproof effect, not easy to rebond

• Good cutting property, satisfy the use need of mobile phone thin frame

• Not easy to separate layer when mold shaping, adopt super thin foam substrate double side tape to meet thin tape’s need.

• Satisfy whole machine drop down test, pull test, and roller test

main application:

• CPU and radiator fixed

• LED plate and structure fixed

• Electronic component and radiator fixed

The Features
model
FP3020-1
thickness
0.2mm
width
1030mm
length
50m
stickiness
≥18NN / in²
thermal conductivity(W/m*K)
≥0.2
Temperature resistance
-20~100
retention
≥48H / 1kg / in²
